Parsedmarc - Open source DMARC report analyzer and visualizer

06.12.19 04:49 PM By PostBox Services

An open source alternative to commercial DMARC report processing tools

Blog Author : Sandeep Saxena ParseDMARC Code on GitHub

What is DMARC?

DMARC stands for Domain-based message authentication, reporting and conformance. DMARC is an email authentication protocol which when published for a domain, ensures that any legitimate email is authenticated against DKIM and SPF standards and that any fraudulent activity appearing to come from domains is either quarantined or blocked.

DMARC helps in stoping spoofed spam and phishing from reaching you and your customers, protecting your information security and your brand.

How DMARC works ?

A DMARC policy allows a domain owner to indicate that emails from his/her domain is protected by SPF and DKIM.

DMARC uses a DNS record to publish information on how an email from a domain should be handled. This record helps domain owners to control what happens if a message fails authentication tests of SPF & DKIM alignment
DMARC’s (SPF and DKIM) alignment checks prevents spoofing of the “header from” address by:

Matching the “header from” domain name with the “envelope from” domain name used during an SPF check, and
Matching the “header from” domain name with the “d= domain name” in the DKIM signature.

However many organisations are not able to deploy DMARC because of the complexities, misconceptions and costs involved with paid DMARC report analysing tools.


Parsedmarc - an open source alternative to commercial DMARC report processing tools

parsedmarc is a Python module and CLI utility for parsing DMARC reports. When used with Elasticsearch and Kibana (or Splunk), it works as a self-hosted open source alternative to commercial DMARC report processing services.

Features
Parses draft and 1.0 standard aggregate/rua reports
Parses forensic/failure/ruf reports
Can parse reports from an inbox over IMAP
Transparently handles gzip or zip compressed reports
Consistent data structures
Simple JSON and/or CSV output
Optionally email the results
Optionally send the results to Elasticsearch and/or Splunk, for use with premade dashboards
Optionally send reports to Apache Kafka

We deployed this tool and found that it serves our purpose best. Off course commercial tools have some added features and they can be deployed if someone is looking to avail those features.

You can take a complete look at the ParseDMARC's   DMARC-dashboard in this PDF file
Individual screenshots of various pie charts / data are given here which will help you understand the capabilities of this open source tool.



                                                                                                 ------------------------------------------------------------------------------

               If you need any help to deploy this tool please reach out to Postbox Consultancy Services. Drop us a note at [email protected]

                                                                                                  ------------------------------------------------------------------------------



SPF Alignment



DKIM Alignment



                                                                         DMARC Alignment

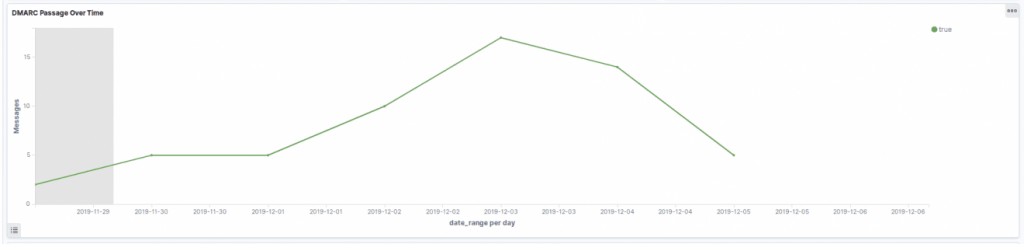

                                                            DMARC Passage Over Time

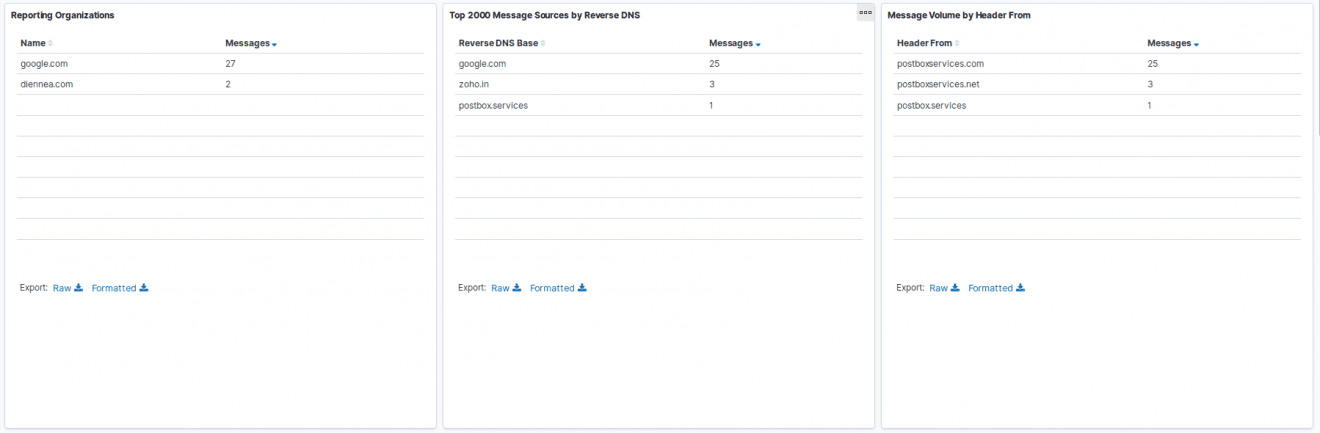

Reporting Organisation, Source by Reverse DNS and Volume by Header From

                                                                            Message Source Countries

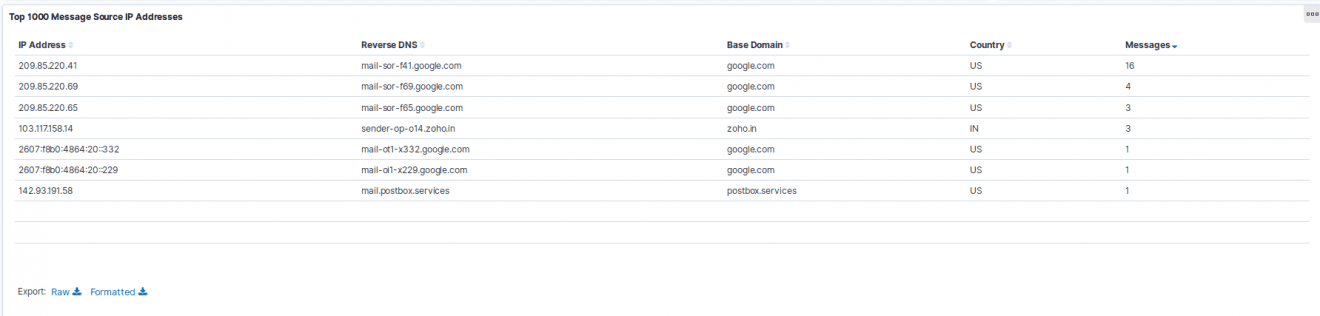

                                               Top 1000 Message Source IP Addresses

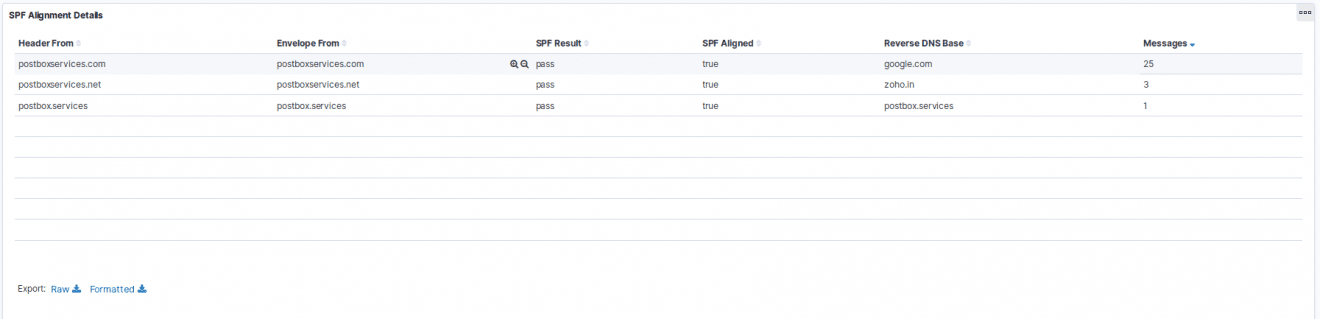

                                                                                          SPF Alignment Details

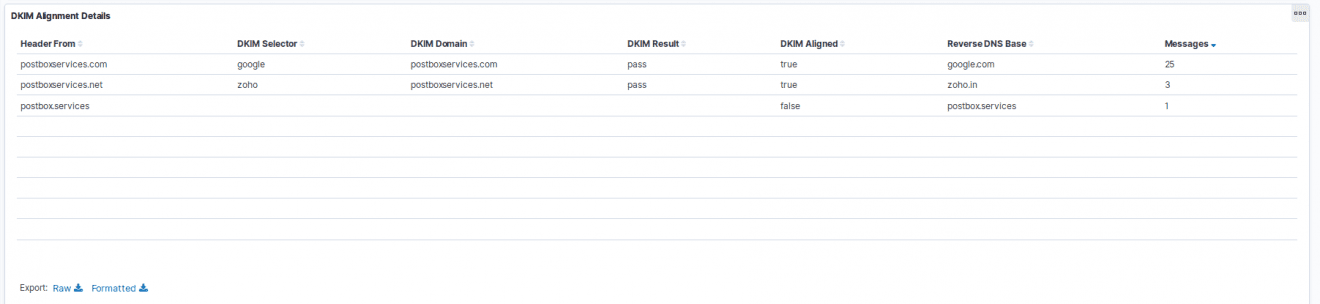

                                                                                 DKIM Alignment Details

----------------------------------------------------------------------------------------

If you need any help to deploy this tool please reach out to Postbox Consultancy Services. Drop us a note at [email protected]

-----------------------------------------------------------------------------------------
